PLEASE upload your validated drop chart at the checkout. Include caliber, barrel twist rate, bullet model, bullet weight, muzzle velocity, and environmental conditions the chart is set up for.

PLEASE Specify your prefered turret layout in the COMMENTS field at the CHECKOUT.  - Chose HUNTER, LONG RANGE HUNTER or PRECISION HUNTER

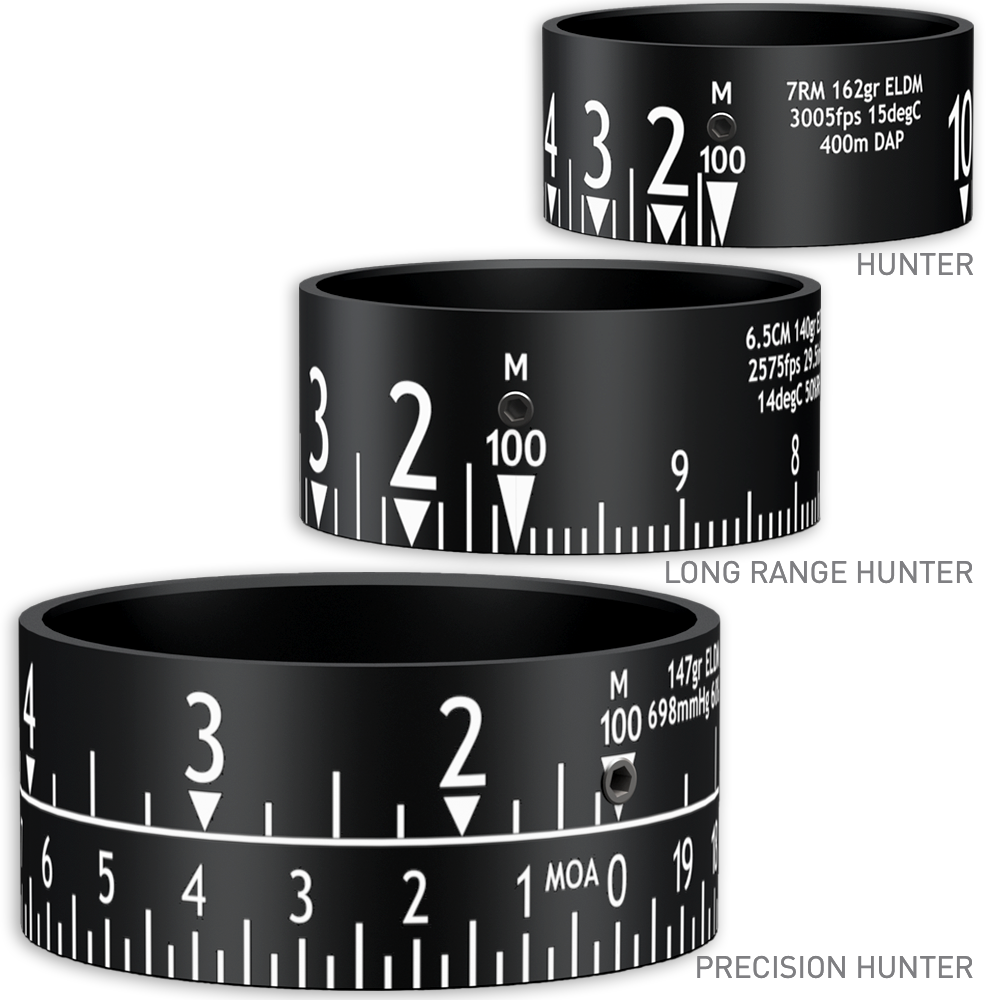

HUNTER

For the hunter wanting large fast target acquisition markers only that is specific to their load and environmentals.

On the base layer of the turret a short line marks every 25 m/yds while a longer line marks every 50 m/yds, a number over a downward facing solid triangle marks every 100 m/yds e.g. 5 = 500 m/yds.

LONG RANGE HUNTER

For the hunter wanting large fast target acquisition markers set to their predetermined distance but still having the ability to utilise the firing solution offered when using a Kestrel or other ballistic solver for taking longer distance more technical shots.

On the first section of the turret a short line marks every 25 m/yds while a longer line marks every 50 m/yds, a number over a downward facing solid triangle marks every 100 m/yds e.g. 5 = 500 m/yds.

On the following section of the turret a short line marks every .1 MRAD while a longer line marks every .5 MRAD, a number marks every 1 MRAD or a short line marks every .25 - 1/4 MOA while a longer line marks every .5 - 1/2 MOA, a number marks every 1 MOA.

PRECISION HUNTER

For the hunter wanting fast target acquisition markers but still have the ability to utilise the firing solution offered when using a Kestrel or other ballistic solver for taking more technical shots in more challenging environments.

On the top layer of the turret a short line marks every 25 m/yds while a longer line marks every 50 m/yds, a number over a downward facing solid triangle marks every 100 m/yds e.g. 5 = 500 m/yds.

On the bottom layer of the turret a short line marks every .1 MRAD while a longer line marks every .5 MRAD, a number marks every 1 MRAD or a short line marks every .25 - 1/4 MOA while a longer line marks every .5 - 1/2 MOA, a number marks every 1 MOA.

The number of clicks per revolution of the turret is 80 for MOA and 100 for MRAD scopes.

NOTE: To build the most accurate turret we highly recommend that the data you supply has been validated for your rifle and scope combination with live fire confirmation.
