All NEW layout designs for 2020 will now be supplied on our Gen.2 Universal fitting turret ring. These are quick and easy to install and more importantly there is no longer any need for dot ring modifications!
Code Z6-MRAD-58-1REV | Bar Code 5054492651018
ALL OUR TURRETS ARE NOW AVAILABLE IN GEN.2 THAT ARE UNIVERSAL FIT AND DO NOT REQUIRE ANY DOT RING MODIFICATION

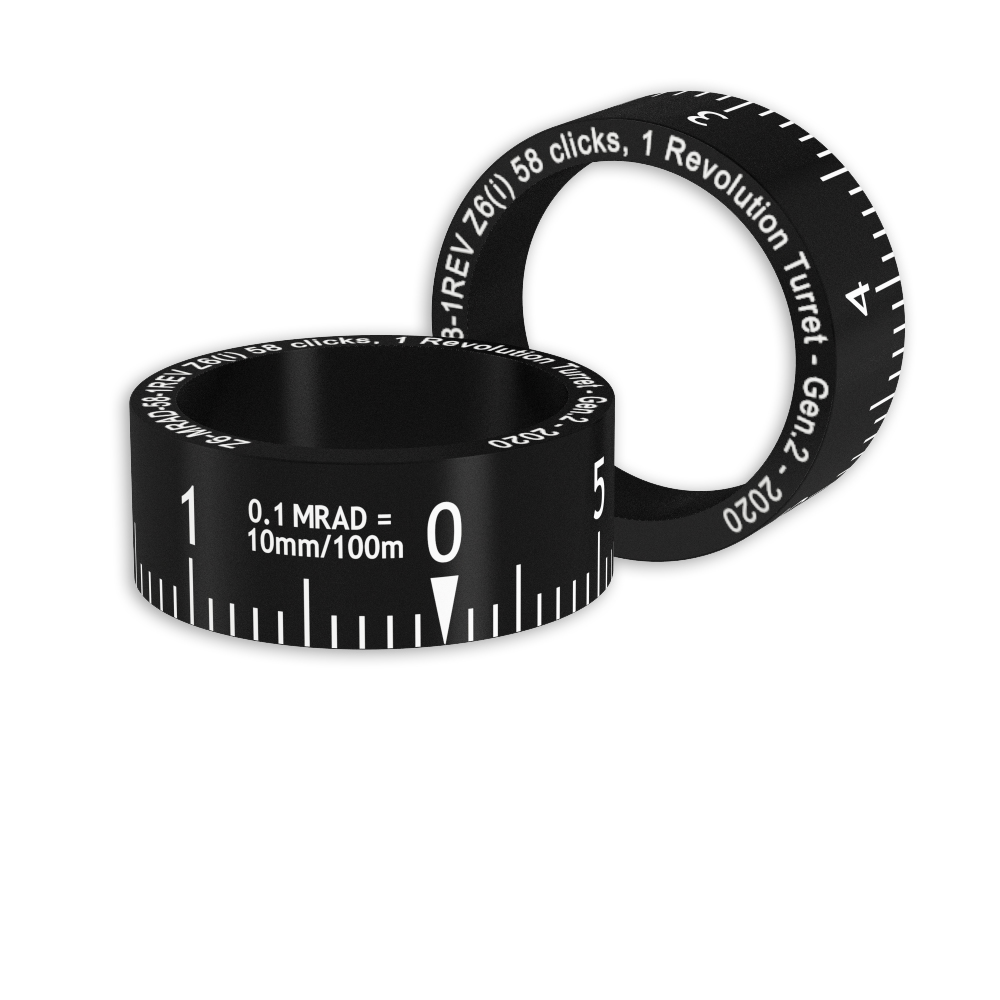

.1 MRAD turret clicks are indicated on the turret with short lines around the base, .5 MRAD markings are indicated with longer lines and 1/2 size text above, 1 MRAD markings are indicated with a downward facing arrow and full size text.
1 click = .1 MRAD = 10mm @ 100m
Each full rotation contains 58 clicks, equivalent to 5.8 MRAD.
With the factory zero stop installed, there are generally 53 clicks available, equivalent to 5.8 MRAD.
To achieve 2 revolutions of the turret the factory zero stop must be removed. See How to Remove Factory Zero Stop.
It may also be necessary to use a tapered scope base on your action or scope rings that are fitted with offset inserts to get to 2 full revolutions of your turret.
Swarovski Z6(i) 2-12x50 BT
Swarovski Z6(i) 3-18x50 BT
