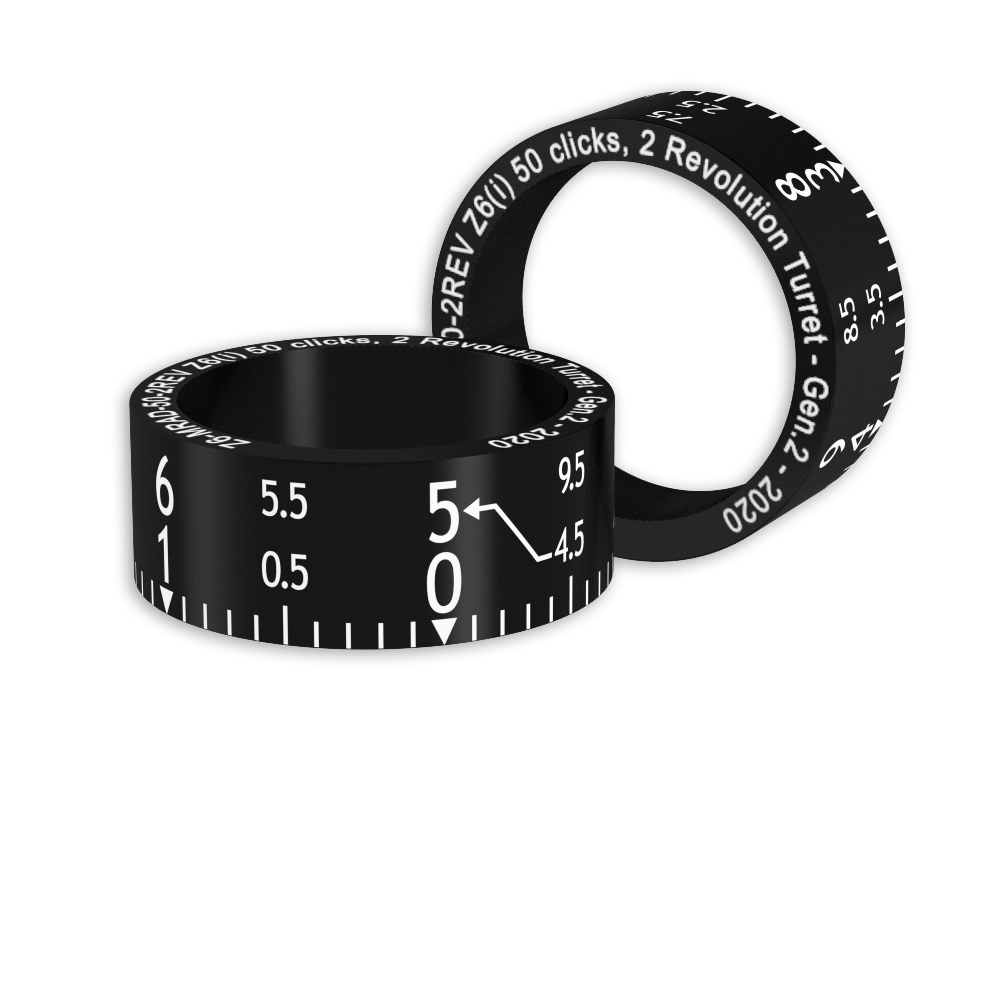

Our Gen.2 Universal fitting turret ring is quick and easy to install without any need for dot ring modifications.
Code Z6-MRAD-50-2REV | Bar Code 5054492651018
.1 MRAD turret clicks are indicated on the turret with short lines around the base, .5 MRAD markings are indicated with longer lines, 1 MRAD markings are indicated with a longer line and full size text above.
1 click = .1 MRAD = 10mm @ 100m
Each full rotation contains 50 clicks, equivalent to 5.0 MRAD.
With the factory zero stop installed, there are generally 45 clicks available, equivalent to 4.5 MRAD.
To achieve 2 revolutions of the turret the factory zero stop must be removed. See How to Remove Factory Zero Stop.
It may also be necessary to use a tapered scope base on your action or scope rings that are fitted with offset inserts to get to 2 full revolutions of your turret.
Swarovski Z6(i) 1.7-10x42 BT
Swarovski Z6(i) 2.5-15x44 BT
Swarovski Z6(i) 2.5-15x56 BT
Swarovski Z6(i) 5-30x50 BT
